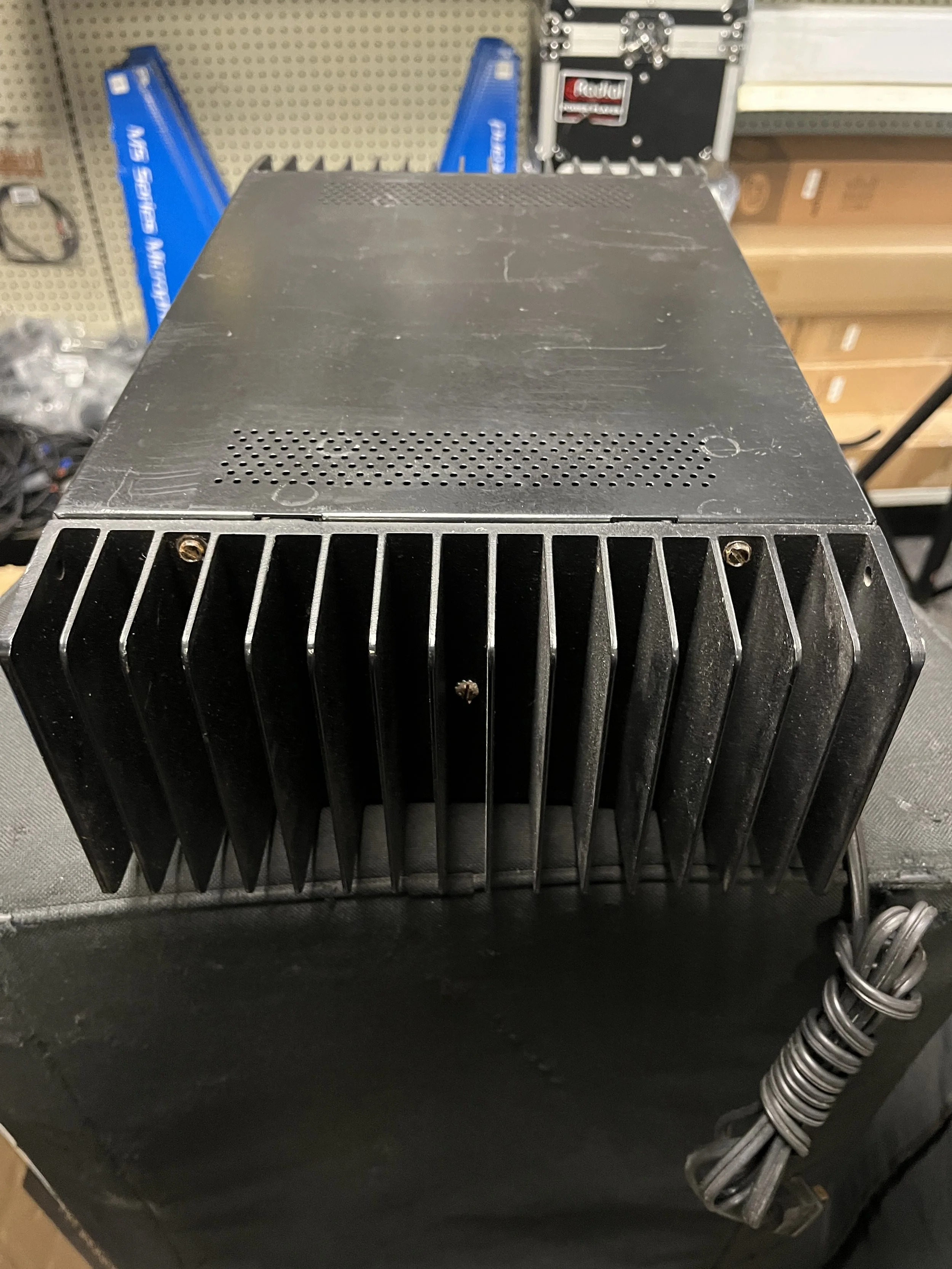

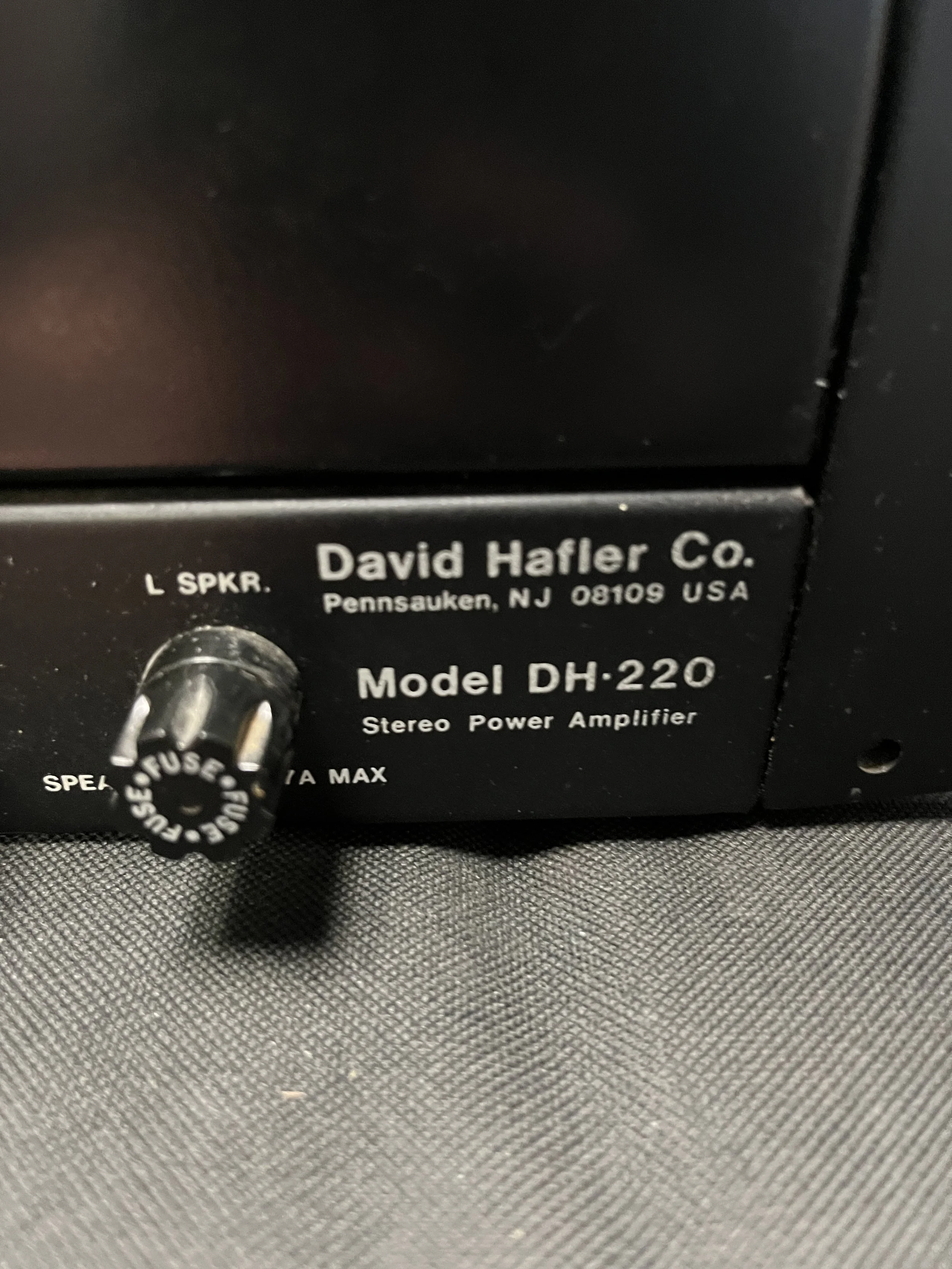

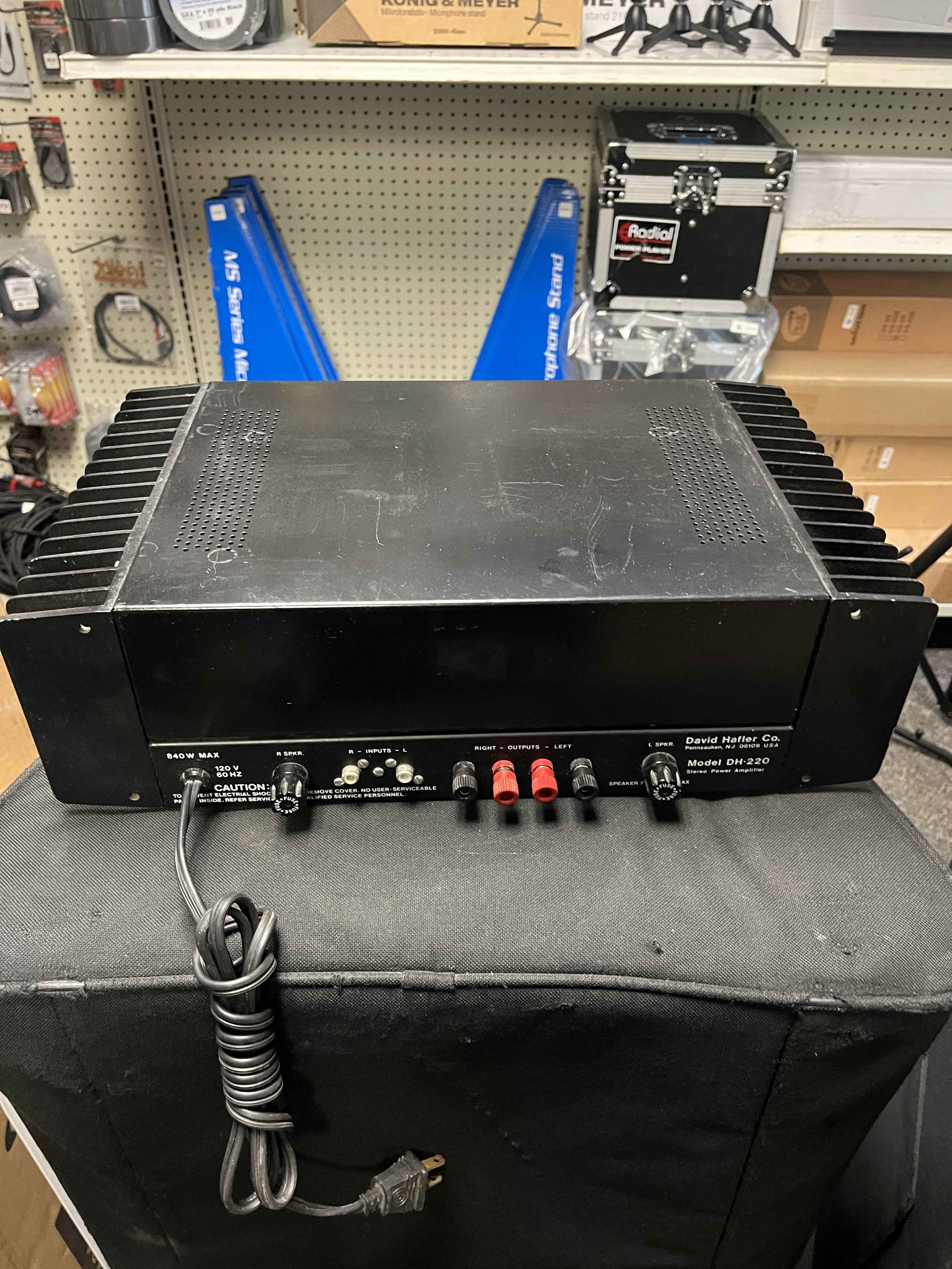

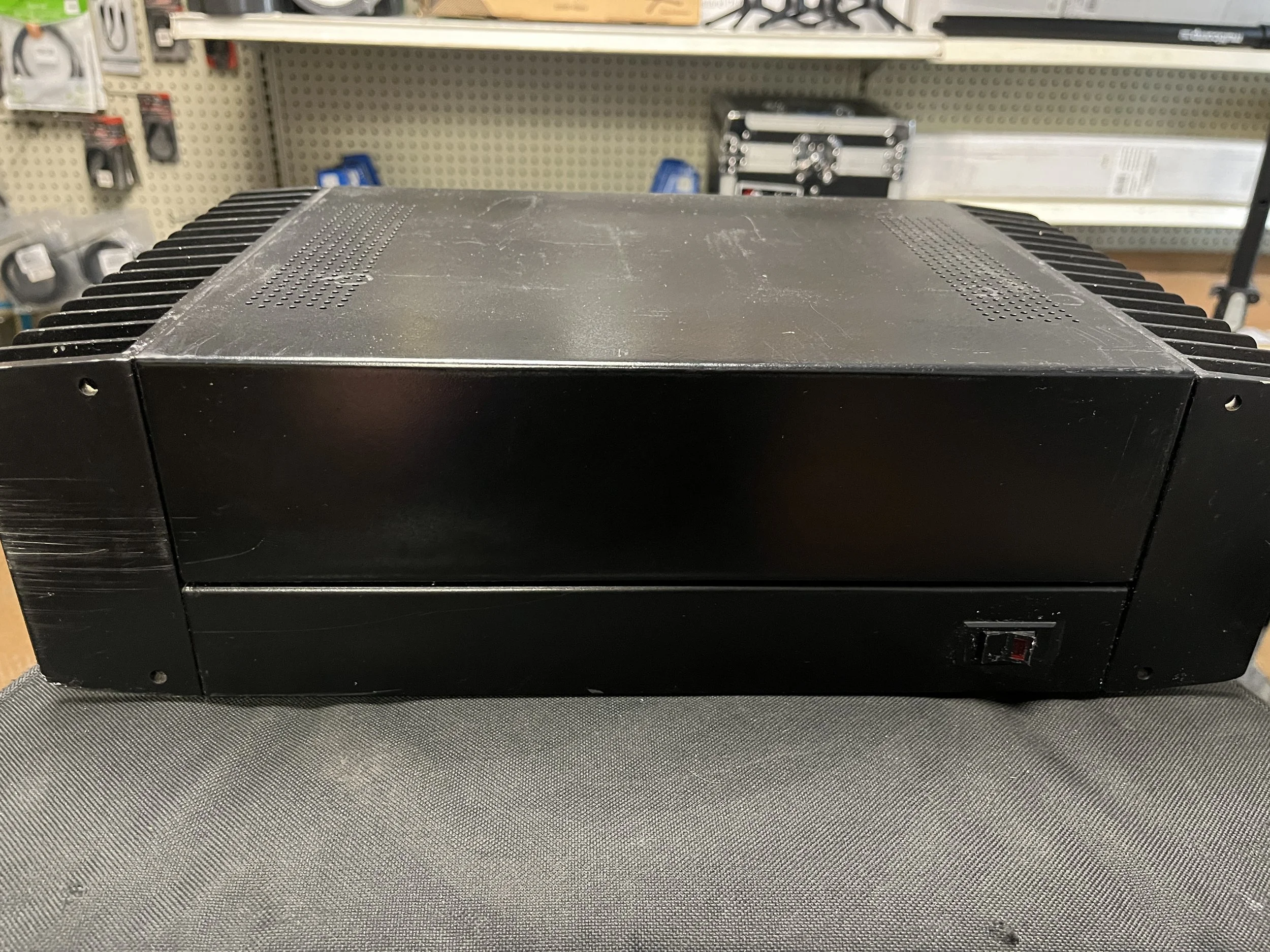

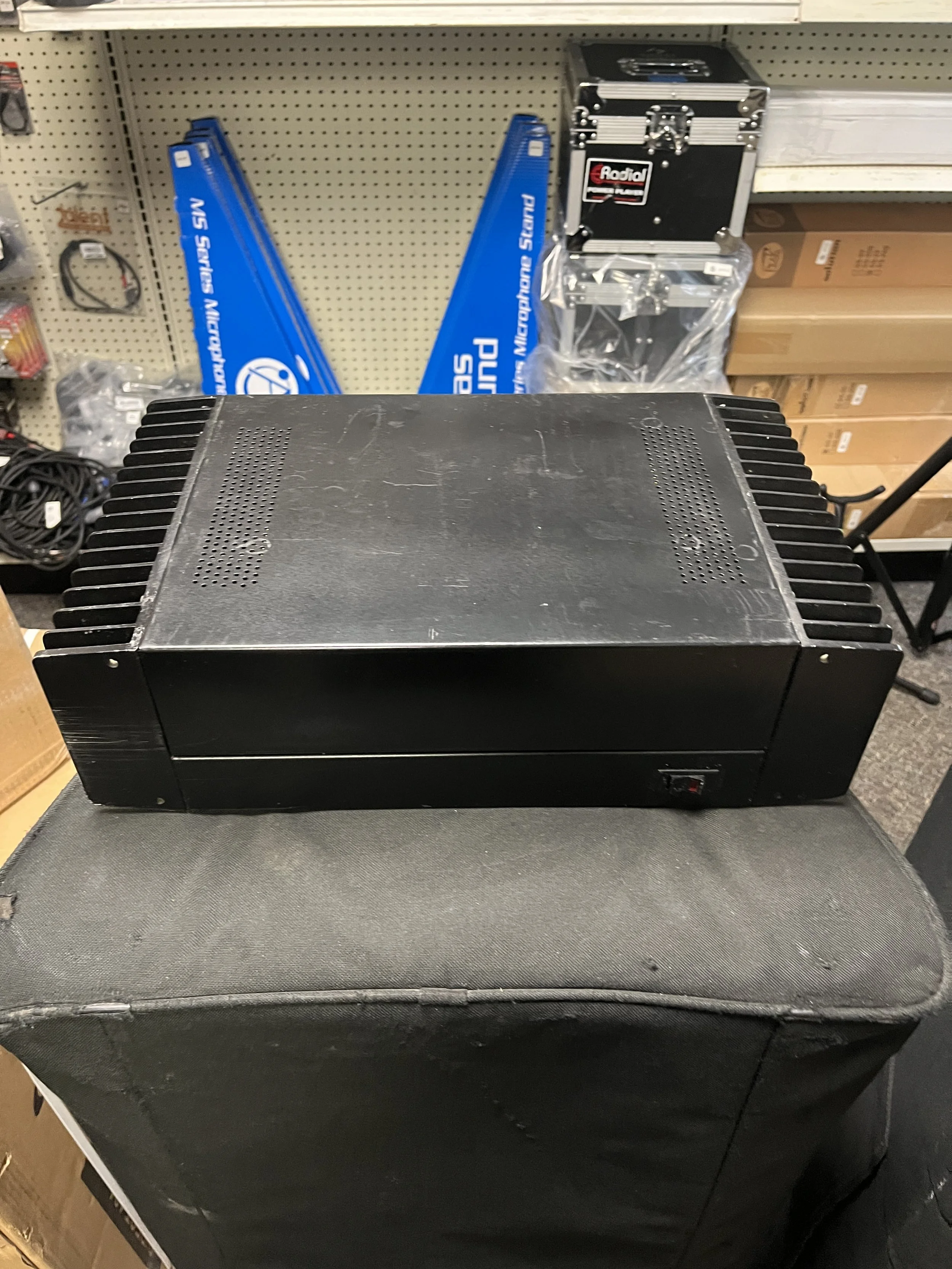

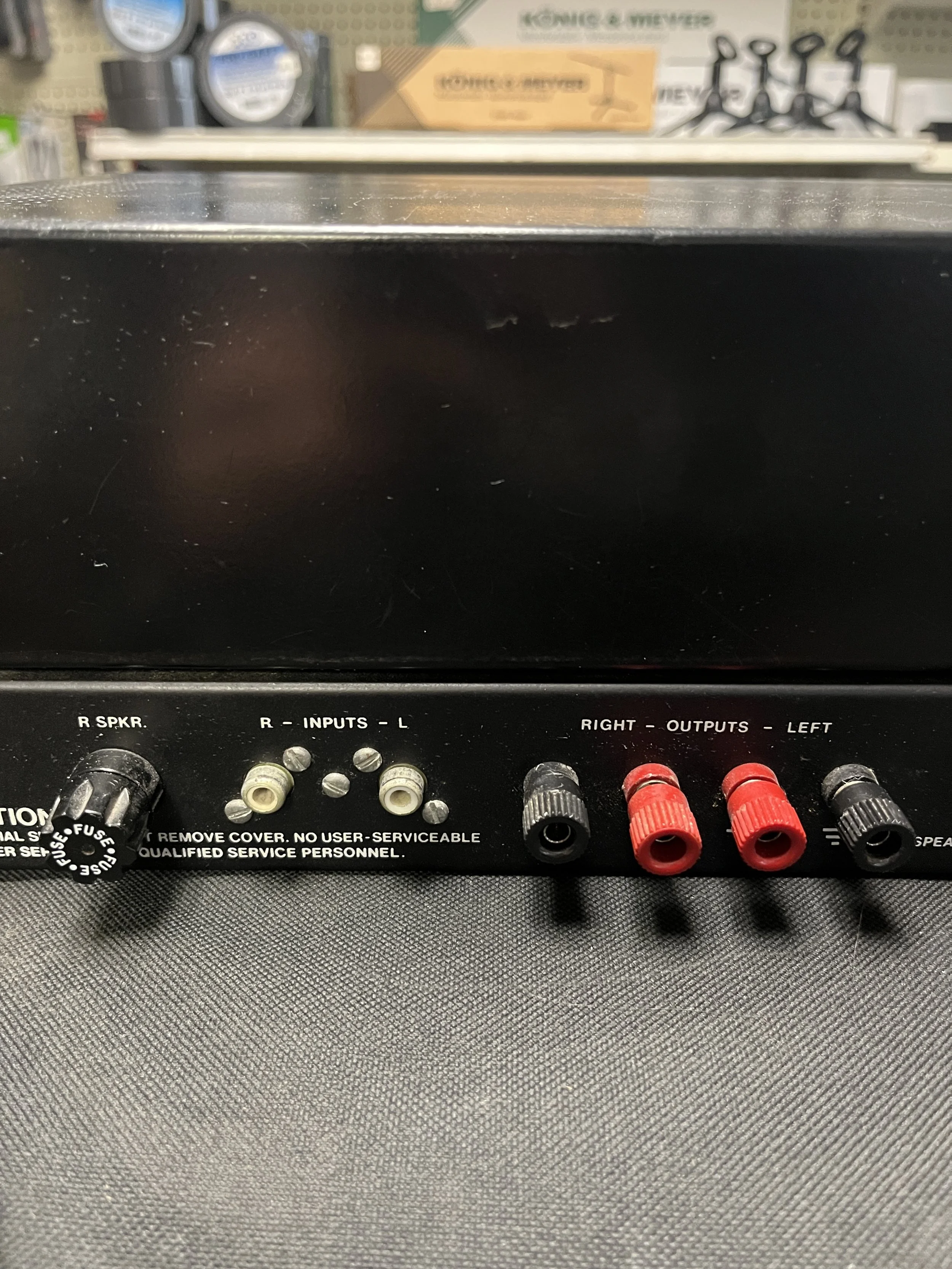

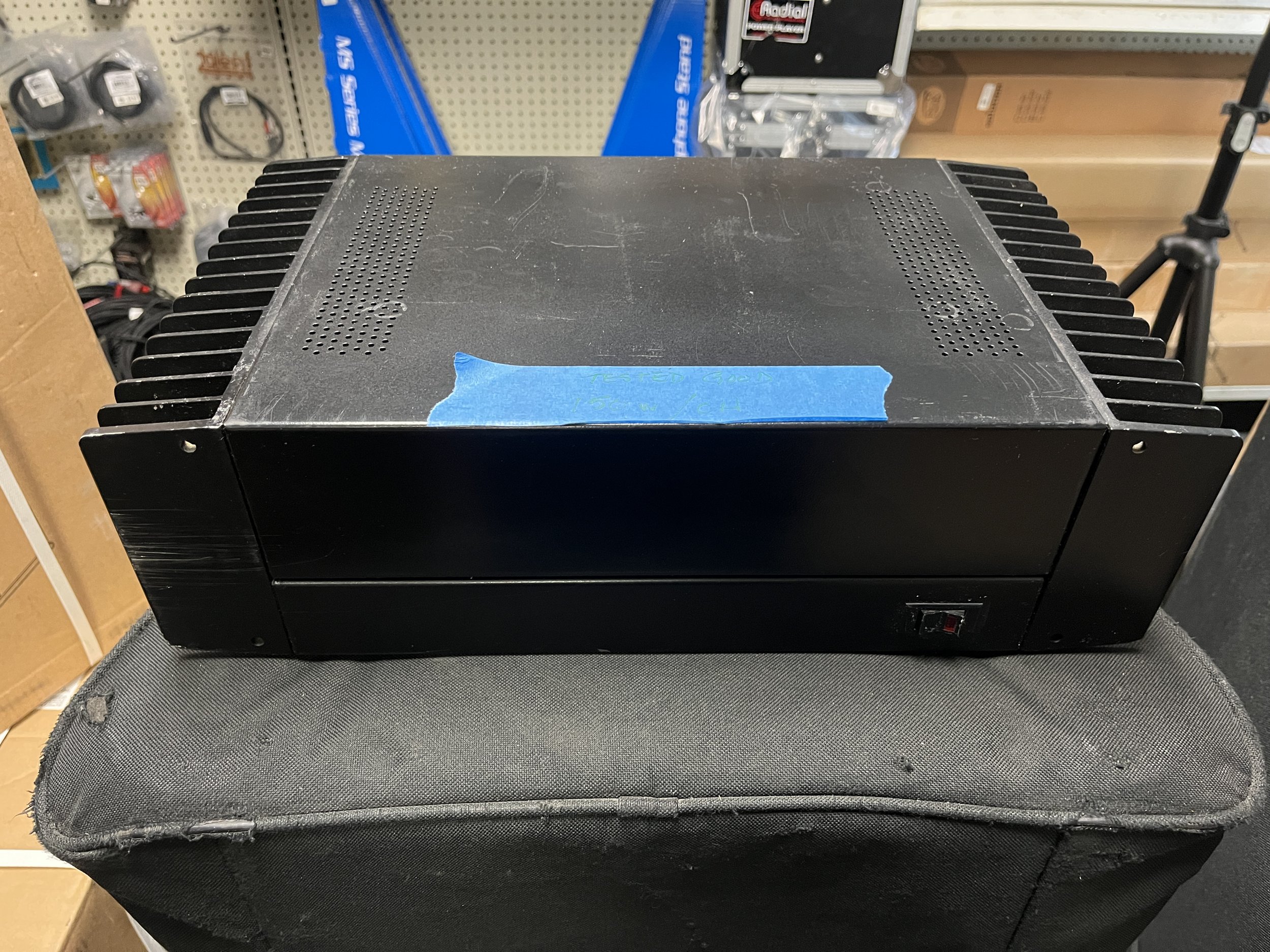

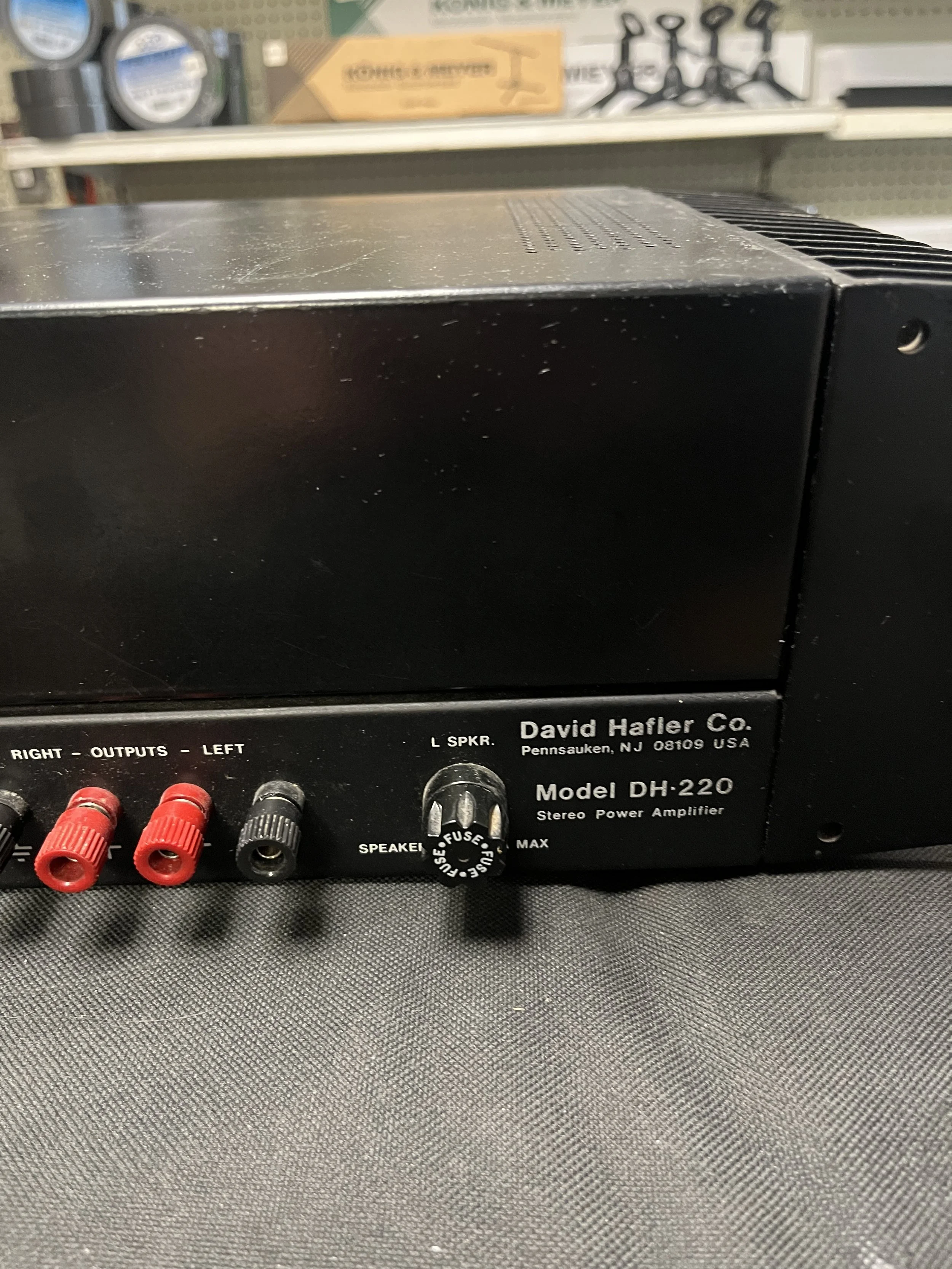

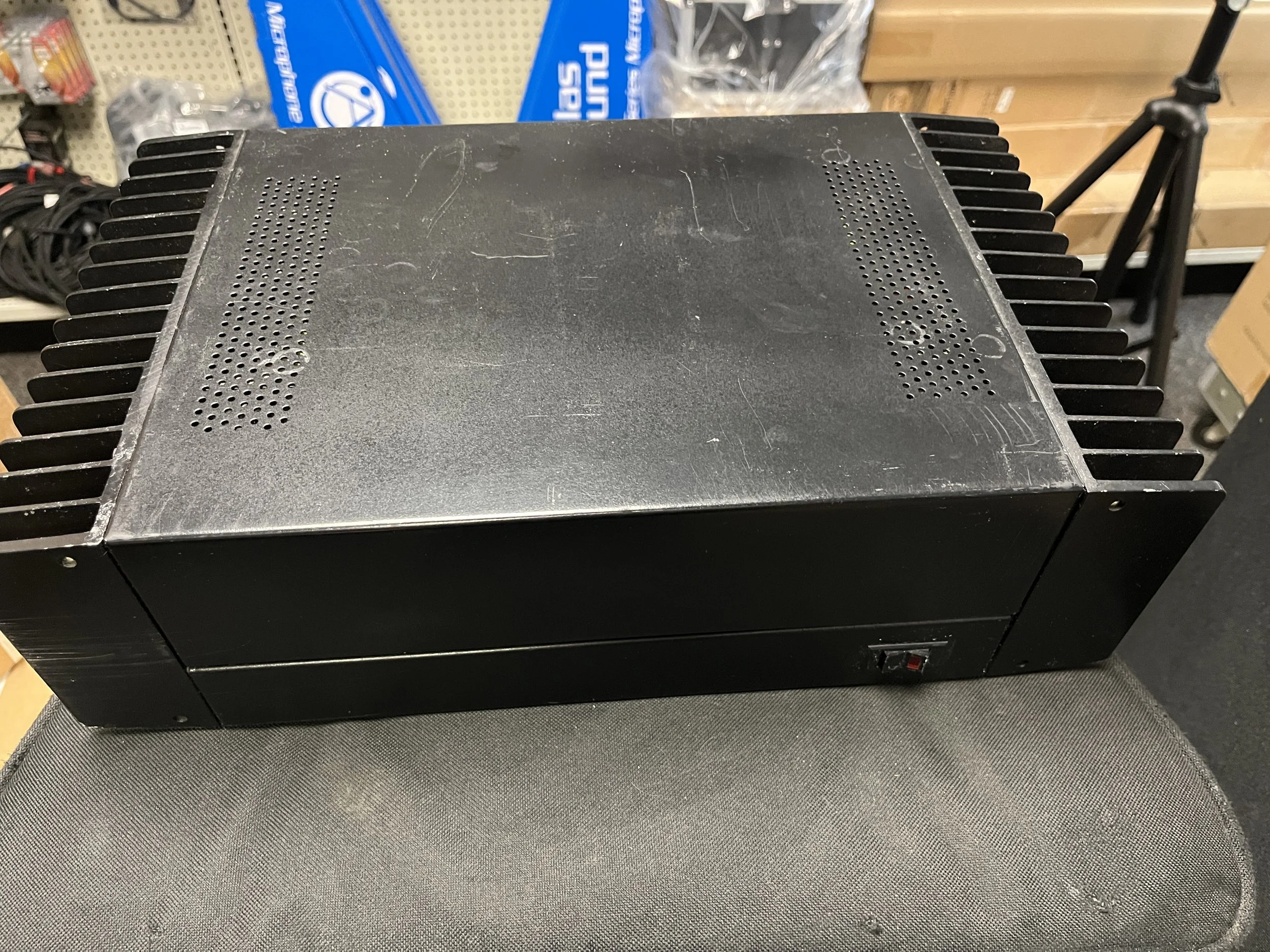

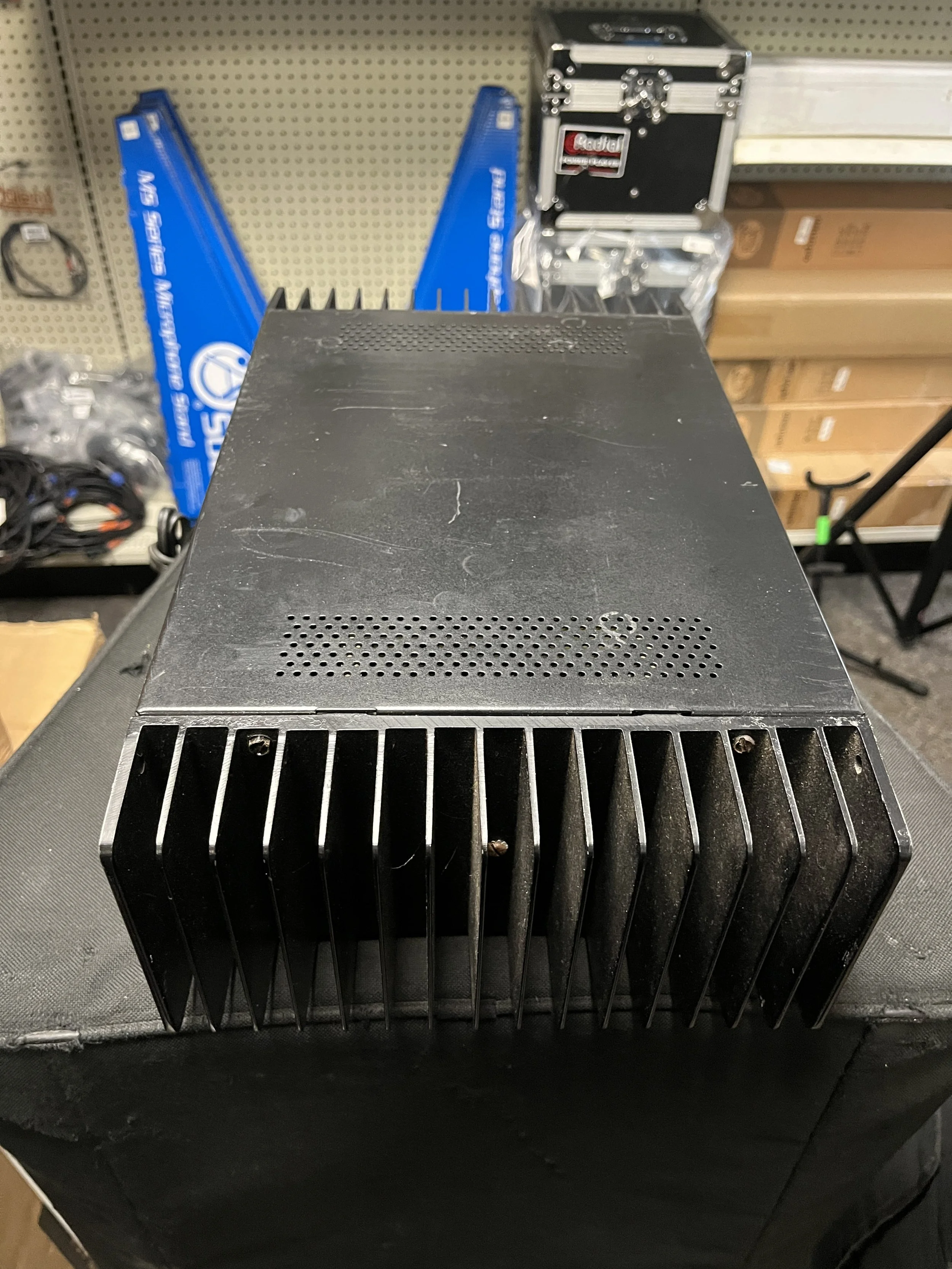

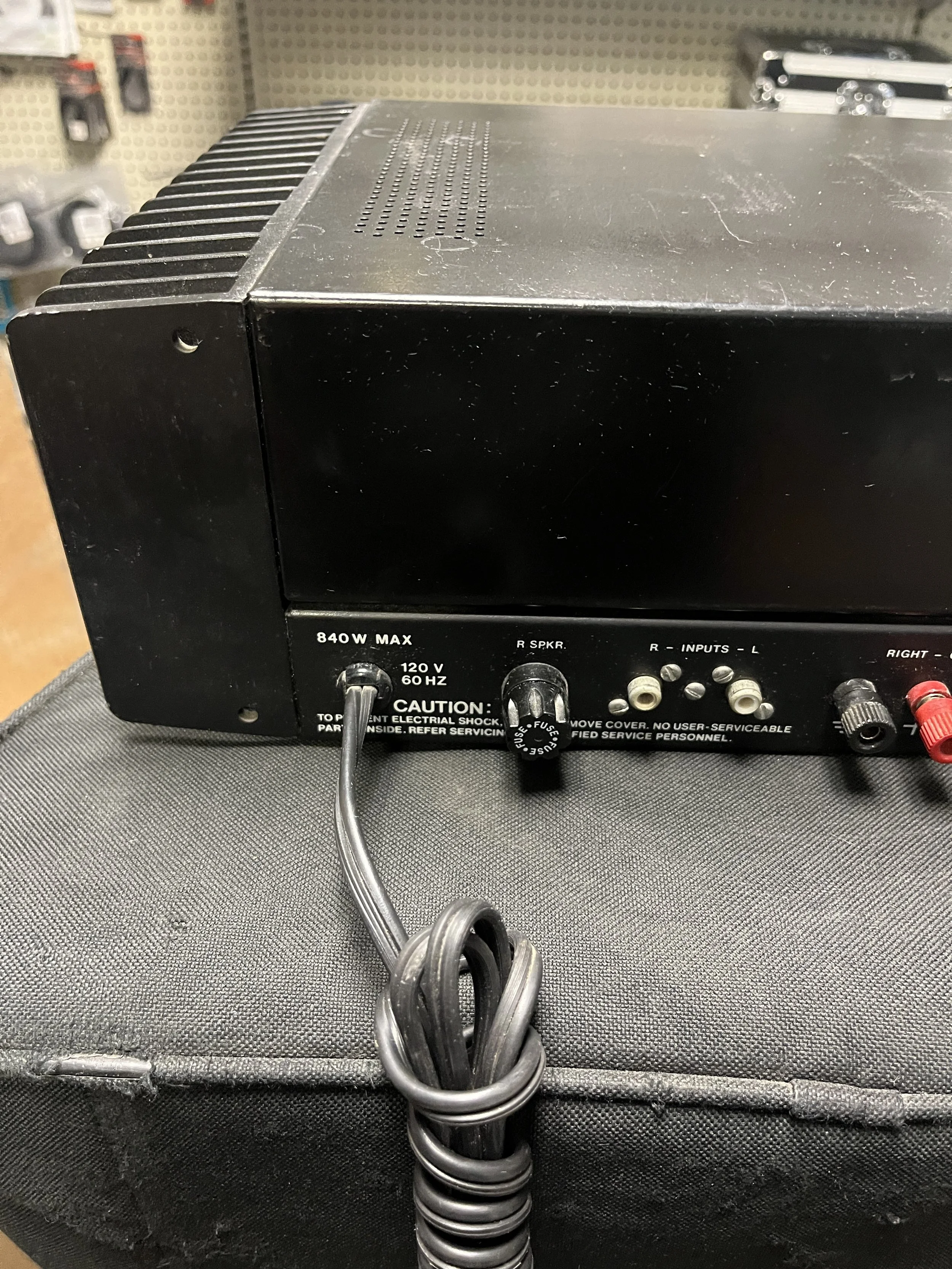

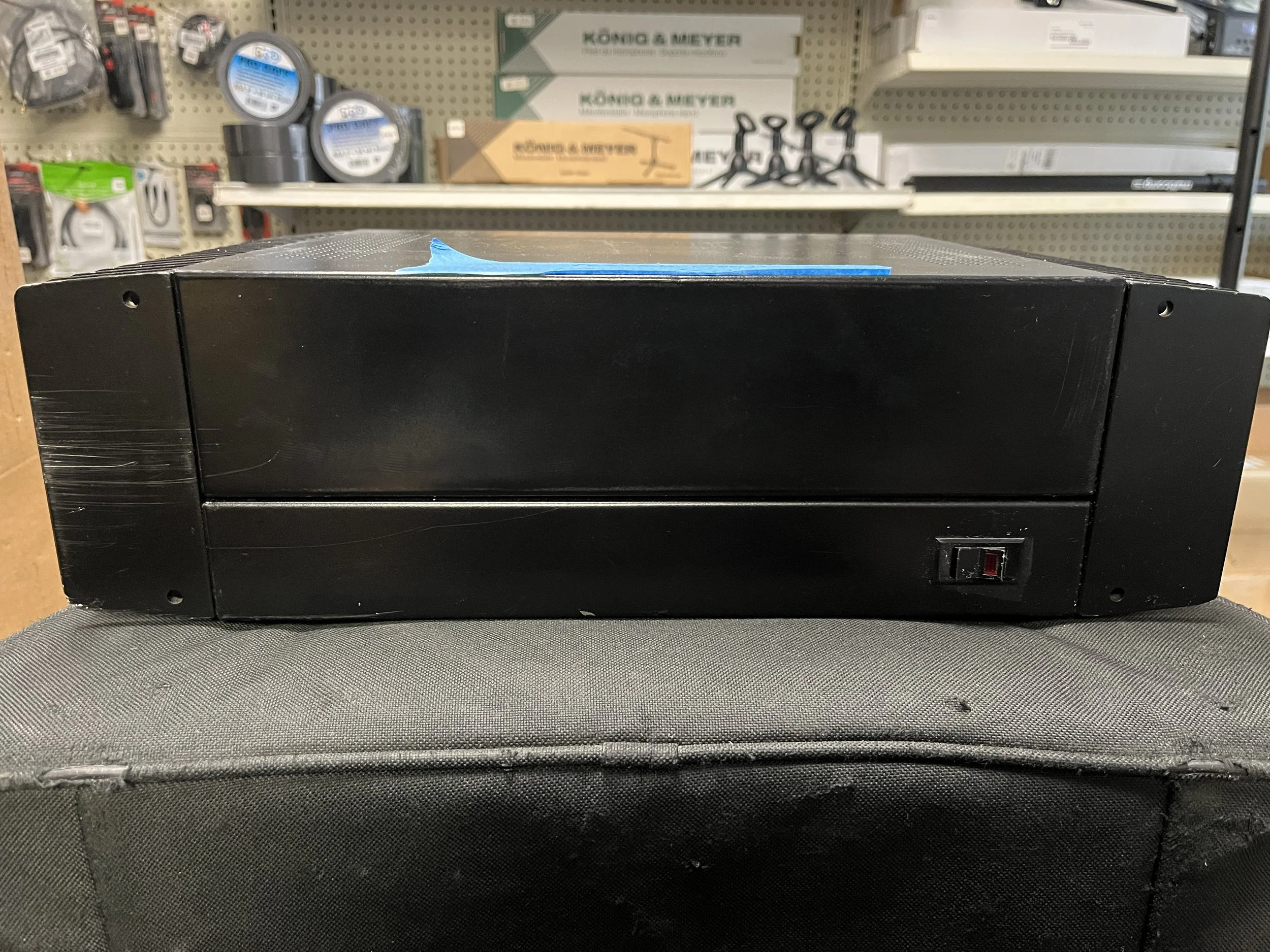

This unit has been cleaned and bench tested in the ProShow service department. 115 Watts at 8 ohms, as spec'd. A nice example of a vintage audiophile amplifier with extremely low distortion.

Ships double boxed and well packed.

The DH-220 circuit is a refinement of the DH-200 design, a Hafler landmark which has achieved worldwide recognition, and has elicited glowing reviews since its 1979 introduction.

As in the DH-110 preamplifier, particular attention has been paid to component quality, using polypropylene or film capacitors wherever feasible, for example, for superior sound.

Combining the latest power MOSFET technology with uniquely simple and effective circuit topology reduces distortion of all types, and at all power levels, over the full audio frequency spectrum, to the vanishing point.

Specifications

Power output: 115 watts per channel into 8Ω (stereo)

Frequency response: 6Hz to 60kHz

Total harmonic distortion: 0.02%

Damping factor: 60

Input sensitivity: 1.55V

Signal to noise ratio: 100dB

Semiconductors: 26 x transistors, 8 x MOSfet, 29 x diodes, 4 x zener diodes, 1 x diode bridge

Dimensions: 5-1/8 x 16 x 10-1/2 inches

Weight: 26lbs

Year: 1984
